MCB Miniature Circuit Breaker

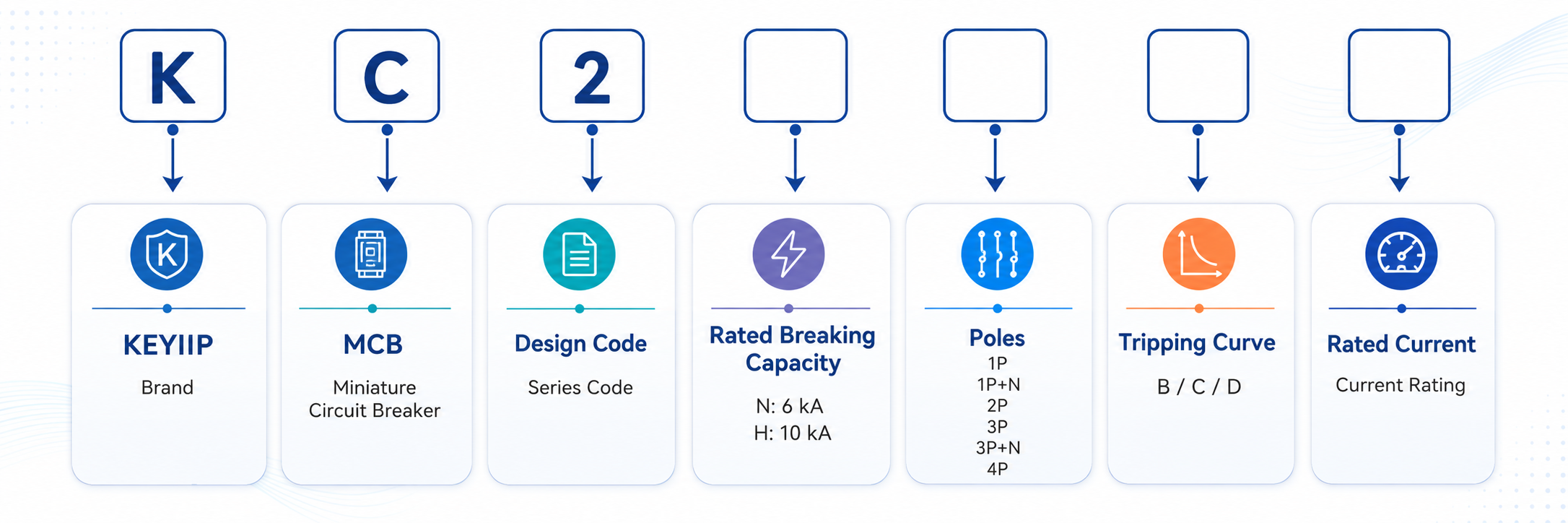

KC2 is the second generation of Miniature Circuit Breaker developed by Sinava. The breaking capacity Icnis up to 10kA, compatible with full range of accessories.
KC2 protects the low voltage final distribution systems against overload and short circuit. KC2 can also function as control and isolation in the domestic, commercial and industrial electrical distribution systems.
As a Circuit Breaker Manufacturer, Sinava Energy offers a range of circuit breakers, including Miniature Circuit Breakers (MCBs), Molded Case Circuit Breaker (MCCBs), and Air Circuit Breakers (ACBs) for different electrical distribution requirements.
Specification
Product application: household and similar places
Pole number: 1P, 2P, 3P, 4P
Rated current (In): 63A
Rated operate voltage (Ue):AC230V/400V
Rated insulation voltage (Ui): AC500V
Rated impulse withstand voltage (Uimp): 4kV
Curve characteristic: C, D
Breaking capacity:
Icn=6kA, AC400V
Ics=100%Icu
Product width: 18mm
Conform to the standard: IEC 60898-1, EN 60898-1, GB 10963.1
Certificate: CCC CE CB

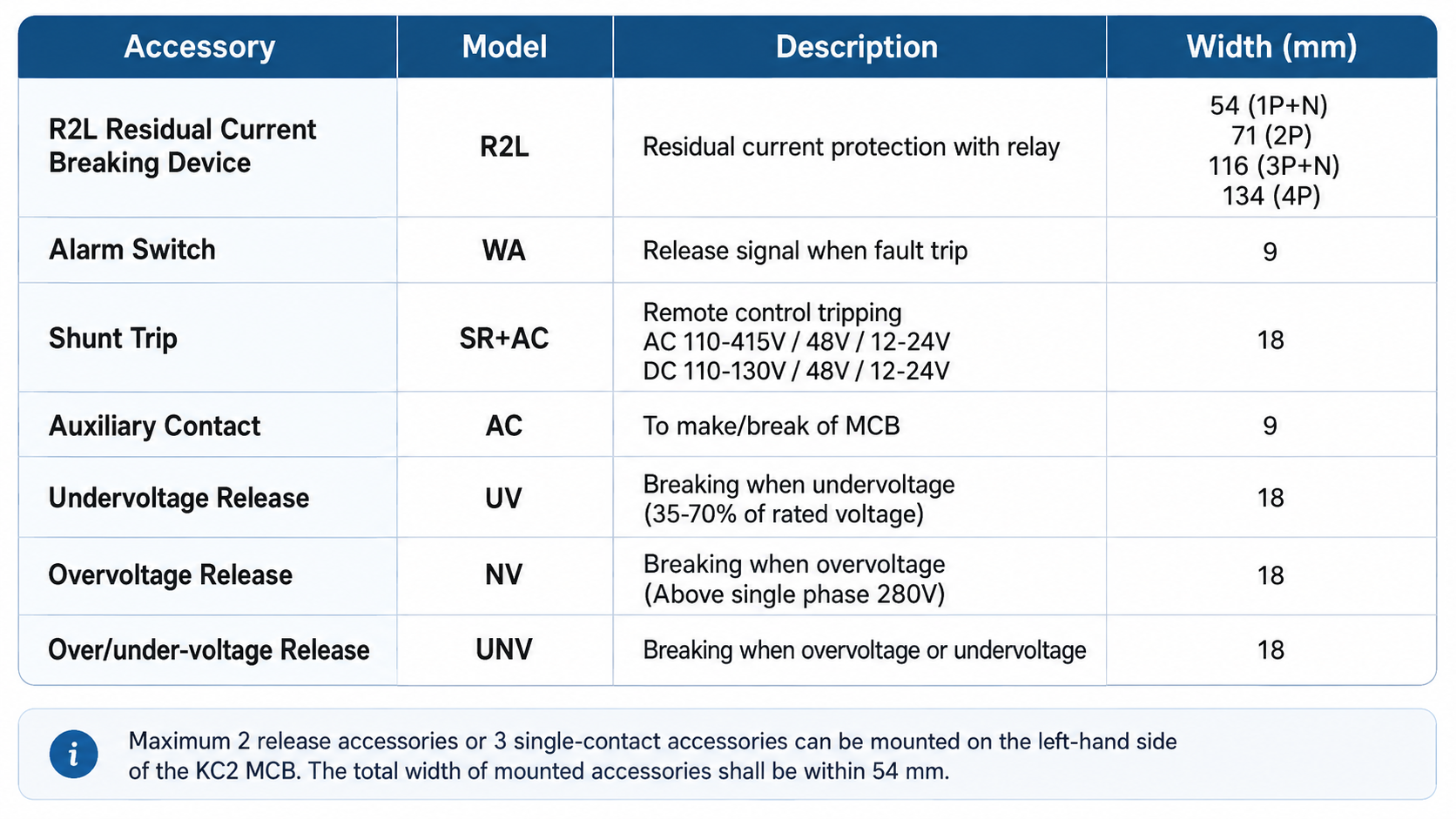

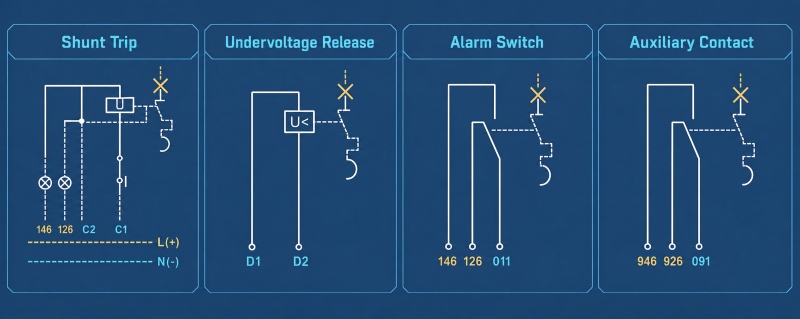

Accessories
| Accessory | Model | Description | Width(mm) |
| R2L Residual Current Breaking Device | R2L | Residual current protection | 54(1P+N) 71(2P) 116(3P+N) 134(4P) |
| Alarm Switch | WA | Release signal when fault trip | 9 |
| Shunt Trip | SR+AC | Remote control tripping | 18 |
| Auxiliary Contact | AC | To make/break of MCB | 9 |
| Undervoltage Release | UV | Breaking when Undervoltage (35-70% of rated voltage) |
18 |
| Overvoltage Release | NV | Breaking when Overvoltage (Above Single Phase 280V) |
18 |
| Over/under-voltage Release | UNV | Breaking when Overvoltage or Undervoltage | 18 |
