Multi-Circuit Power Monitoring Solution for Data Centers: SEM8MT Technical Analysis

Abstract:

As the demand for energy efficiency in high-density environments grows, the SEM8MT multi-circuit power monitoring device emerges as a critical solution for real-time energy analysis. This article explores the architecture, core technologies, and functional advantages of the SEM8MT, focusing on its application in data center power management. By integrating high-precision measurement with advanced alarm mechanisms, the SEM8MT enhances power system reliability and optimizes energy consumption for industrial and commercial facilities.

1. SEM8MT Function Overview

In modern infrastructure, multi-circuit power monitoring is essential for refined energy management. The SEM8MT AC device is a high-precision digital monitor designed to support:

• Flexible Monitoring: Simultaneous tracking of 6 three-phase circuits or 18 single-phase circuits.
• Key Parameters: Real-time data acquisition for voltage (V), current (I), active/reactive power (P/Q), and energy consumption (kWh).
• Versatile Applications: Ideal for data centers, 5G base stations, manufacturing plants, and microgrid systems.
• Technical Specifications & Communication

The SEM8MT is engineered for industrial-grade performance with the following technical parameters:

3. Working Principle and Core Mechanisms

3.1 Real-Time Multi-Channel Detection

The SEM8MT utilizes high-precision Current Transformers (CT) with a high-density sampling rate of 128 points per cycle. Utilizing advanced metering chipsets, the device calculates electrical parameters every 20ms and refreshes the full data set every second. This ensures real-time power monitoring for facilities with complex load distributions.

3.2 Advanced Alarm and Threshold Management

The device features built-in configurable thresholds for over voltage, over current, and phase loss. When a threshold is triggered, the SEM8MT executes a signal via its internal relay. This can be integrated into SCADA systems or external alarms to facilitate preventive maintenance and minimize unplanned downtime.

3.3 Power Quality and Harmonic Analysis

To combat harmonic pollution from non-linear loads, the SEM8MT provides deep insights into power quality, including:

● THDi / THDu and individual harmonics up to the 31st order.

● Voltage Dip/Swell and three-phase unbalance monitoring.

These insights allow facility managers to identify interference sources and report event records directly to the SCADA system.

3.4 Historical Data Auditing

With a storage capacity of 36,000 historical records, the SEM8MT supports daily tracking of peak current and active power. This robust data logging is vital for electricity auditing, load pattern identification, and implementing long-term energy-saving measures.

4. Case Study: 9.6MW Cloud Data Center (Malaysia)

4.1 Project Overview

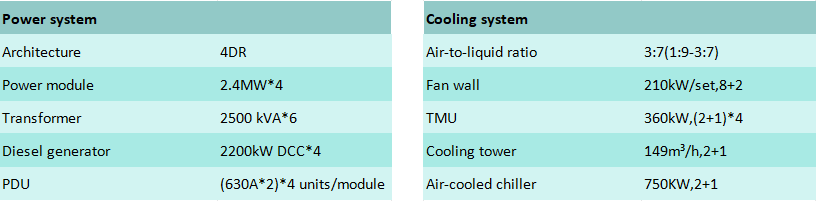

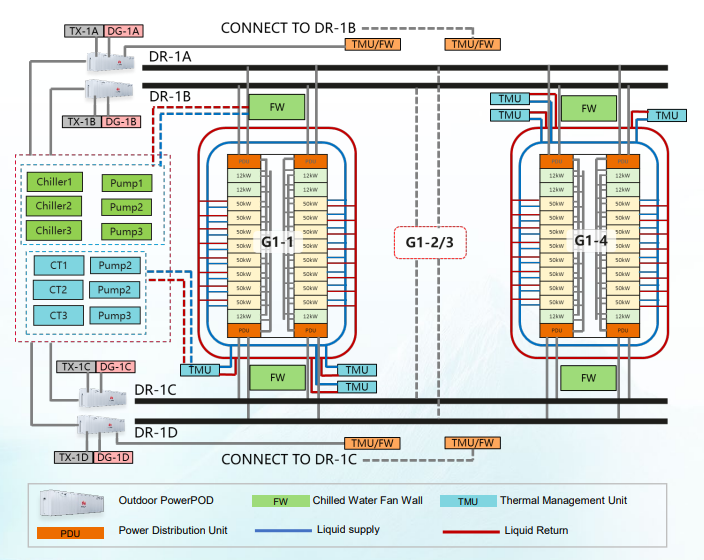

This project involved the deployment of a multi-circuit power detection system for a 9.6MW hyperscale cloud data center in Malaysia. The primary goal was to monitor power quality and energy efficiency across thousands of distribution circuits.

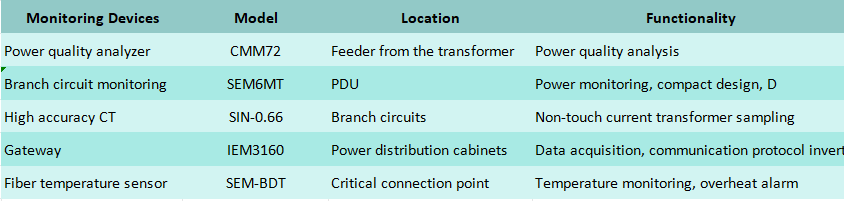

4.2 Key Performance Indicators (KPIs)

● Real-Time Monitoring: Over 2,000 circuits monitored simultaneously to prevent overloads.

● PUE Optimization: Accurate calculation of regional PUE values helped increase transformer load efficiency by 5-8%.

● Harmonic Mitigation: By identifying harmonic sources, the facility improved UPS and server power efficiency by 2-3%, significantly extending IT equipment lifespan.

● Energy Savings: Targeted cooling strategies based on real-time data resulted in a 3-5% reduction in annual electricity costs.

4.3 Implementation Recommendations

● Phased Deployment: Prioritize main circuits and critical loads before expanding to branch circuits.

● Standardization: Use uniform CT ratios and communication protocols to simplify DCIM/SCADA integration.

● Future-Proofing: Ensure interfaces are reserved for seamless integration with BA (Building Automation) and EMS (Energy Management Systems).

5. Conclusion

The SEM8MT provides a sophisticated yet cost-effective solution for intelligent power management. By combining high-precision multi-circuit monitoring with deep power quality analysis, it ensures that modern data centers achieve both operational reliability and maximum energy efficiency.
