KYC

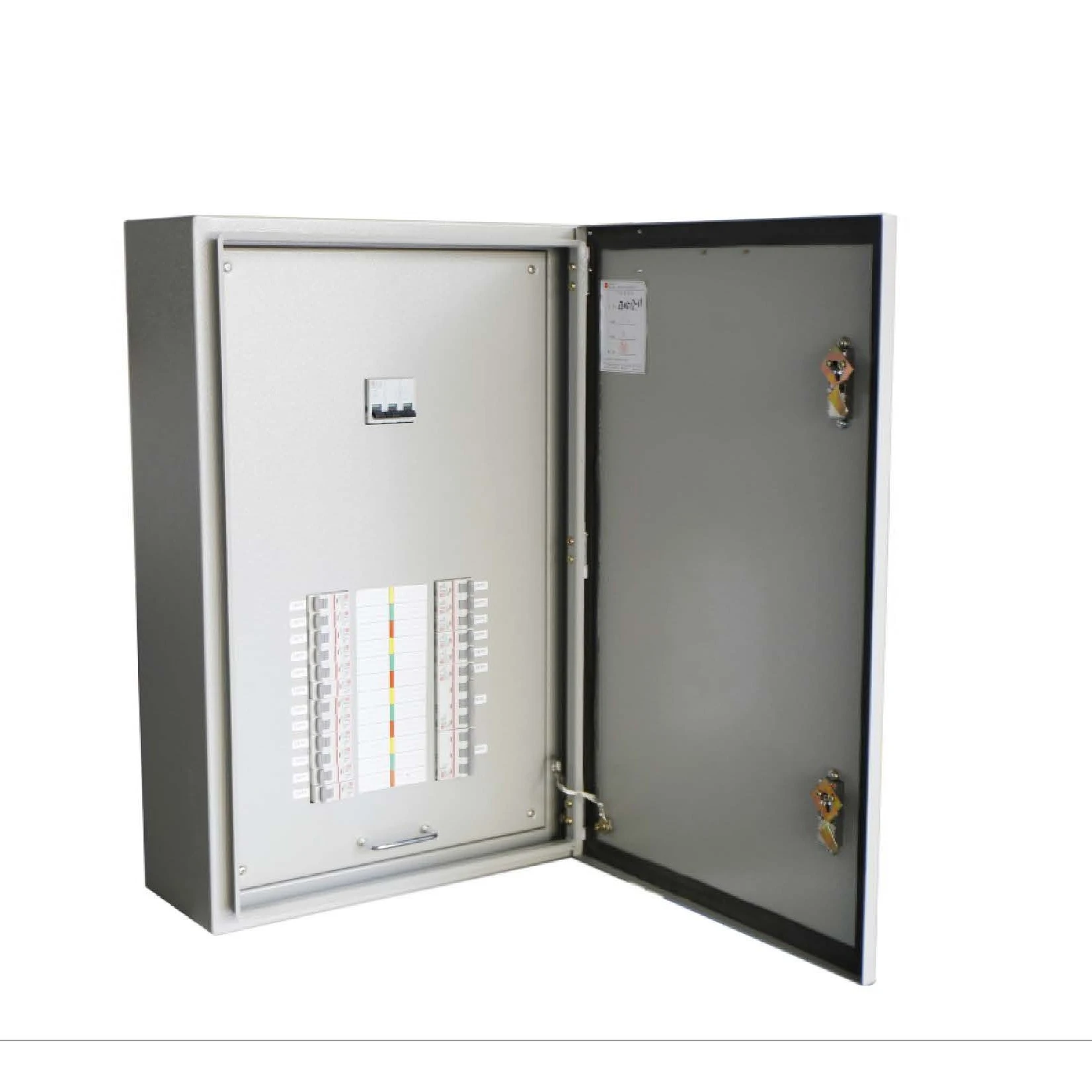

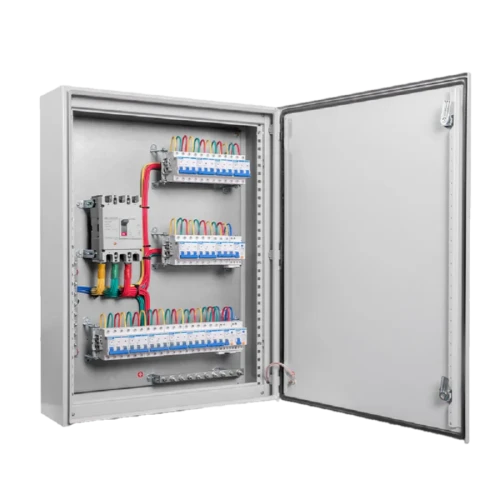

"KYC"MCB distribution board is built based on customer feedback and marketing research."KYC" is in compliance with BSEN 61439-3, GB 7251.3 and IEC 61439-3 standard. Miniature circuit breaker is installed, which can provide overload and short-circuit protection and hence assure the safety of users and equipment.
The main busbar structure on distribution panel is improved reasonably. The panel fulfills standardized design requirements, so different brands and types of MCBs can be installed fit. KYC series distribution board is suitable for factory, shopping mall, school, etc.

- Rated insulation voltage: AC 415/690V

- Rated current: Main busbar up to 250A, outgoing 6~63A

- Rated operating frequency: 50Hz/60Hz

- Temperature rise test: In compliance with IEC 61439-3 & GB7251. 3

- Degree of protection: In compliance with IEC 61439-3. 10kA 1s

- Short circuit with standard strength: Standard  IP31, IP55 optional

Data

Range	Power Distribution Board
Product name	KYC
Product Type	Compact enclosure
Application	Multi-purpose
Installation accessory	Floor-standing
Device composition	1 body 1 cable gland plate 1 locking system with handle door 4 mounting plate bracket 1 door
Removable parts	Door by screws hinge Mounting plate bracket by screws
Enclosure nominal height	63.0 in (1600 mm)
Enclosure nominal width	31.5 in (800 mm)
Enclosure nominal depth	11.8 in (300 mm)







Product

- Electrical enclosure design that contains recycled steel made with renewable energy to face environmental challenges.

- IEC and UL compliant industrial steel cabinet, making it sturdy, robust, and durable for maximum component protection.

- Ergonomic design for convenience & time-saving operations.

- Large choice of sizes and accessories to simplify mounting, to adapt any control panel and electrical panel requirement.

- Reusable recycled cardboard packaging corners.
