How to Optimize Data Center PUE with Multi-Circuit Monitoring?

In the operation of modern large scale Data Centers, "invisible" power consumption is the biggest obstacle to energy efficiency. As rack power density increases, traditional single-circuit meters can no longer meet the space and precision requirements of Remote Power Panels (RPP) and Power Distribution Units (PDU).



This article explores how the innovative Sinava SEM8MT multi-circuit power monitoring system builds a high-reliability, high-density distribution monitoring network.





1. Challenges in Data Center Terminal Distribution

Data center O&M (Operations and Maintenance) teams face three major hurdles when implementing fine-grained energy management:

● Space Constraints: Space inside RPPs is premium; accommodating dozens of traditional DIN-rail meters is nearly impossible.

● Wiring Complexity: Traditional Current Transformer (CT) wiring is cumbersome, and power-down installation is costly.

● Accuracy Bottlenecks: Achieving billing-grade energy audits requires Class 0.5S or higher end-to-end accuracy.



2. Sinava SEM8MT series: Modular Multi-Circuit Solution

Based on the branch circuit monitoring architecture, this multi-circuit solution utilizes a "Bus + Modular" design to revolutionize monitoring infrastructure.



Core Component Breakdown:

● Display Unit: The system's "brain, " processing data and supporting mainstream protocols like Modbus-RTU, Modsbus-TCP, and Bacnet.

● Current Measurement Modules:

● Multi-Circuit Capability: A single module can monitor multiple three-phase or single-phase circuits.

● Independence: Each circuit can be independently configured with alarm thresholds to monitor server current fluctuations.

● Flexible or Solid-Core Sensors (Pre-wired CTs): Support Plug & Play (RJ12 interface) with automatic ratio recognition, eliminating short-circuit risks from wiring errors.



3. High-Density Monitoring in Large-Scale Data Centers



Scenario A: RPP and PDU Monitoring

In large server rooms, an RPP may output 42 or more circuits. The SMT8 solution covers all branches with a single system:

● Advantage: Saves up to 70% of installation space compared to traditional meters.

● Real-time Insights: Monitors current, active power, reactive power, and power quality for every individual server rack.



Scenario B: End-to-End Class 0.5S Accuracy

The SEM8MT system ensures accuracy levels required by the ISO 50001 standard (from 2% to 120% of rated current). This is critical for tenant billing in Colocation Data Centers.



4. Technical Deep Dive: Current Modules & Sensors

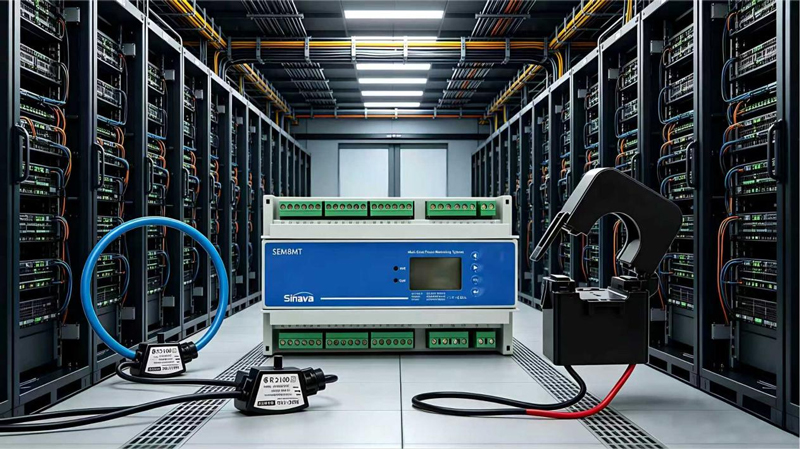

● Modular Scalability: One system can monitor up to 32 current modules (up to 96 single-phase circuits) via a single bus connection.

● RJ12 Technology: The "Click and Lock" RJ12 interface ensures 100% correct electrical connection even in cramped cabinets.

● Sensor Versatility:

● Solid-core: Best for new builds (highest precision).

● Split-core: Ideal for retrofitting live data centers without downtime.

● Rogowski Coils: Flexible installation for large busbars or irregular cable spaces.



5. Comparison: Traditional Meters vs. SEM8MT Solution (H2)

Feature	Traditional Single-Circuit Meter	Sinava SMT8 Solution
Installation Density	Low (Bulky)	Extreme (Modular/Stackable)
Wiring Time	Long (Manual CT/Power wiring)	Fast (RJ12 Plug & Play)
Communication Cost	High (Individual IP/Gateway)	Low (Shared address via Bus)
Hot-Swap	Not Supported	Supported (Expand while live)



6. Conclusion: The Foundation of Green Data Centers

Green transformation starts with measurement. By deploying multi-circuit monitoring systems like SEM8MT, operators can track real-time PUE dynamics and use harmonic analysis to predict potential power failures, ensuring high availability for Tier III/IV facilities.
